Description

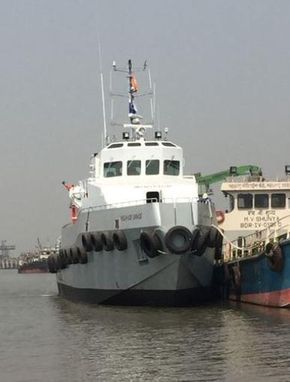

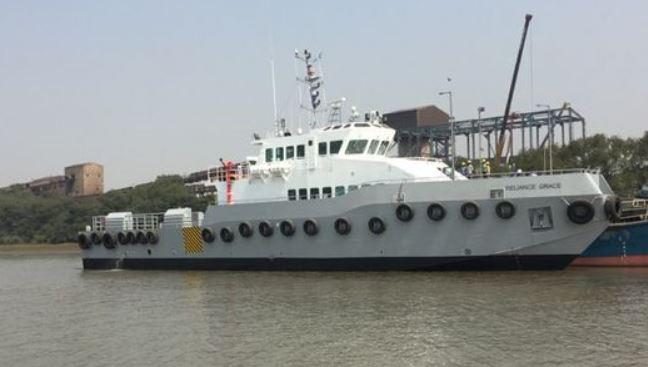

Shallow draft Crew / Utility / Security Vessel

Vessel Applications: Oil Field Security, Crew transfer, Cargo supply services, Dive and ROV support, Survey and Seismic operations, Evacuations and Medevac response, Standby operations, Oil-spill response, Inshore services, including crew transfer, medevac, pilot transfer, cargo supply to inner and outer anchorages, relocation of buoyage marks, navigation aid repairs and maintenance etc.

Specifications

Accommodation

Air Conditioning - Split system with heating and cooling providing redundancy throughout the vessel

Cabins - 4 x 2 man, 2 x 1, 1 x 4, 1 x 6 all with lockable drawers, reading lights, privacy curtains, vertical lockers, power outlets, ladders to upper bunks

Wheel House - Control helm forward and aft
High back seating for 40 passengers,
1 x freshwater fountain, 1 x coffee machine,
1 x refrigerator,
TV video with LCD screens

Galley - Lower deck with seating for 8 persons

Bathrooms and Showers - 4 full bathrooms on lower deck & 3 on upper deck

Washing Machine and Dryer - 1 of each lower deck

Stove and Oven - Electric 1 x 4 induction elements

Microwave & Convection Oven - Yes

Freezer - 1,500 litres total capacity

Cool Room - 1,000 litres fridges

Dishwasher - Yes

Ice Maker - Yes

Dry Storage Room - 4,000 litres

Fresh Water - Fountain 20 litres

Coffee Maker - Nespresso

Main Passenger Deck Area

Main Passenger Deck Area

2 Berth Cabin

Main Passenger Deck Area

2 Berth Cabin

6 Berth Cabin

Engineers Cabin

Captains Cabin

Galley

Dining Area

Construction

Deadweight - 70 tons

Deck Load - 40.0 tons

Deck Strength - 2.0 tons/m2

Clear Deck Area - 80 m2

36 Meter Under Construction

Marine Frontiers Travel Lift

Marine Frontiers Travel Lift

Marine Frontiers Travel Lift

Marine Frontiers Travel Lift

Equipment

Bow Thrusters - 80 HP Electric

Dive Compressor - Provision to fit on aft deck

Compressor - General unit 12 cfm for servicing equipment

Desalination Plant - 1 units producing 3,000 litres in 24 hours

Tools - Frontline tools, equipment and testing tools for preventative maintenance and on-board breakdowns

Spares - On-board spares for preventative maintenance and emergency backup

Fendering - Aircraft tyres

Stern Loading - Flush push up with landing area

Gangway - Portable aluminium gangway

Lines - Berthing, Towing Bridle, Heaving Line

Handling - Boat Hooks, Grapple with Lanyard

Deck Equipment - Recessed tie downs SWL 500 kgs

Mooring - Double Bit Bollards – 6 sets

Plating - 10.0 mm deck

Crew Transfers - Transom 1,350 mm from waterline
Rescue Area 1,600 mm from waterline
Bow 3,750 mm from waterline

Access to Water - Transom and side rescue zones

Anchor - 1 x 200 kgs

Anchor Winches - 1 x Electric 8 ton

Anchor Chain - 1 x 210 metre

Pillar Deck Crane - 1.0 ton SWL at 6.0 m radius with hydraulic extension and winch

Bilge System - Mechanical pump with electric back-up connected to manifold system
Electric automatic pump in all spaces
Central bilge alarm panel to helm station
Manual back-up pump and bucket to meet survey

Ballistics - Level 111 to bridge

Navigation Equipment

Radar - Furuno 2 x FAR 2117

Sounder - Furuno

Plotter - Furuno GP150

GPS - Furuno GP150

DGPS - Furuno

GPS Plotter - Furuno

Auto Pilot - Simrad AP 70

HF / SSB Radio - Icom IC M801E c/w AT 30 auto turner

VHF Radio - Icom IC 411

Hand Held Radio - Inmarsat ASAT

Compass - Furuno SC50

AIS - Simrad MX 535 A

Search Light - Sanshin HR-1012

Intercom - GME to machinery space, accommodation area, mess area and helm

Public Address - Raymarine 430 with 2 speakers in wheelhouse roof

Charts - All current charts for operational areas, hard copies and electronic

Navigation Lights - Yes

Air Horn - Yes

Barometer and Clock - One each at main helm station

EPIRB SART - Simrad SA SO

Broad Band Internet - KVH Tracphone

Thermal Imaging - Ismart PTZ

Sat Phone - 1 x Globalstar

Sat Fax - Yes

Inmarsat - Yes

TV-Stereo-DVD-VHS-CD - 9 sets

Fog Horn - Distress signalling type

Engine(s)

Main Engines - 3 x Caterpillar C32 – 1,450 HP @ 2,300 rpm

Auxiliary Engines - 2 x 80 Kw Caterpillar, 440 volt 3 phase

Maximum Speed - 27 knots @ 2,300 rpm

Cruising Speed - 23 knots @ 2,000 rpm

Economic Speed - 14 knots @ 1,400 rpm

Fuel Consumption
20 litres/hour at anchorage
465 litres/hour at economic speed
650 litres/hour at cruising speed
870 litres/hour at maximum speed

Range - 2,800 nautical miles (with 10% reserve)

Previous Build Engine Room

Previous Build Engine Room

Previous Build Engine Room

Steering Flat

Steering Flat

Previous Build Engine Room

Previous Build Engine Room

Previous Build Engine Room

Electrics

Auxiliary Engines - 2 x 80 Kw Caterpillar, 440 volt 3 phase

Batteries - 6 banks for main engines and generators, starting with one emergency bank above weather deck. Rotary colhersee switch to all

Deck Electrical Outlets - To run reefer containers

Navigation Lights -Port, Starboard, Masthead, Stern & Anchor. 1 x towing, 1 all round white and 2 all round red

Floodlights - 2 sets

Search Lights - 6 units recessed

Deck Lights

Safety Equipment

Medical Facilities - Paramedic Standard

First Aid Kits - 1 x type E, 1 x Sutures kit

First Aid Room - NA

General Emergency Alarm - Yes

Splints - Air Splints

Stretcher - 2 x Ferno

Oxygen Resuscitator - Yes

Defibrillator - Yes

Torches – Signalling

Binoculars - 2 sets – 1 x night vision

Day Shape Flags - Yes

Hand Held Flares - 8 as per survey requirements

Life Rafts - 4 x 20 man

Man Over Board Rings - 6 off, 2 with lights all with lanyards

Solas Life Jackets - 55 Solas and 8 deck RFD work vests

Parachute Rocket Flares - 4 as per survey requirements

Fire Hoses and Nozzles - 3 set with spray nozzles

Fire Hydrants - 3 station

Fire Extinguishers - 12 sets

Fire Control Plan – Muster List - Yes

General Emergency Alarm - Yes

Emergency Lighting - Yes

Emergency Power Supply - Yes

Emergency Fire Pumps - Yes

Fire Monitor Alarm System - Heat and smoke detectors throughout

Fixed Fire Fighting System - Fitted in machinery spaces CO2

Breathing Apparatus - 2 sets

Emergency Escape - Machinery spaces and accommodation areas

Fire Protection - Fire suits – 1 set

Fuel Shut Off - Remote operated

Stability Booklet - 2 sets approved by Classification LR

Operations Manual & Procedures - As approved by LR

Vessel Log Book - To ISO/ISM requirements

Visitors Book - To ISO/ISM requirements

Maintenance Records - To ISO/ISM requirements

Spare Parts Manual -To ISO standards

Small Ships Handbook -Latest publication

Nautical Publications - Latest editions for area of operations

Vessel Stamp - For certifying all on-board documentation

Equipment List - Verified each sailing as required by ISO/ISM

Inventory List - Verified each sailing as required by ISO/ISM

Safety Data Records - As required by ISO/ISM

Certification

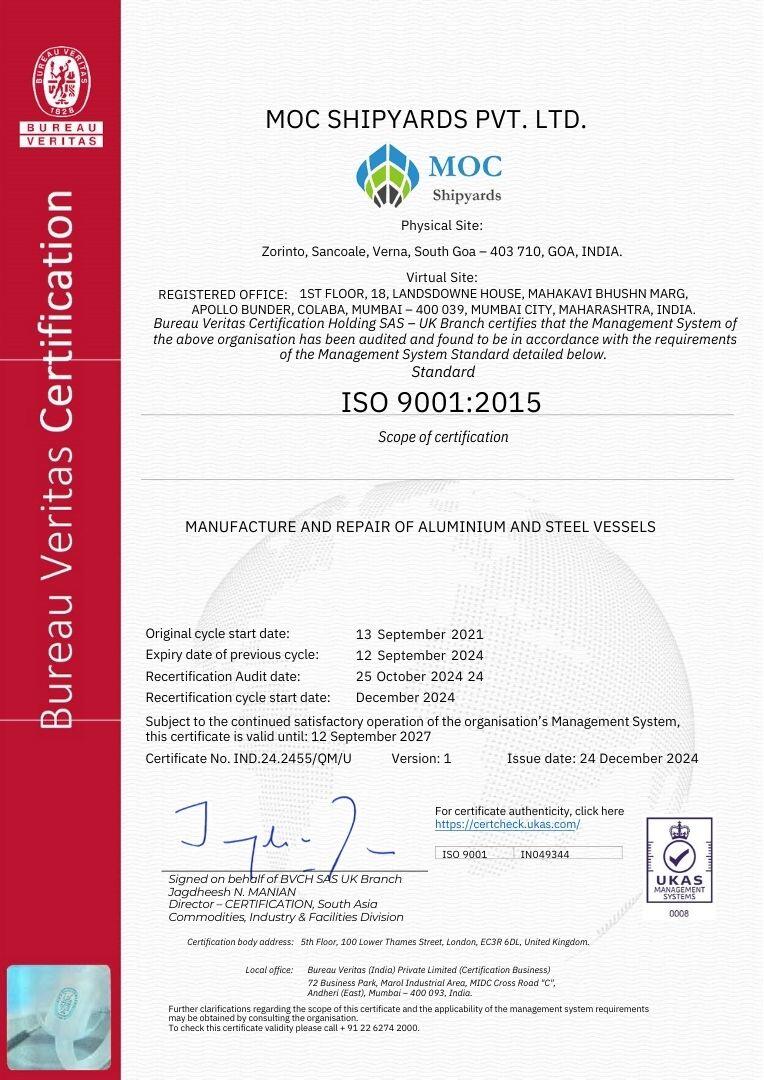

All newbuild ships and boats are built to IACS Classification and flag state rules pertaining to the country of destination. Note this does not apply to all vessels under speculative construction or built outside of CMG partner yards.
