Description

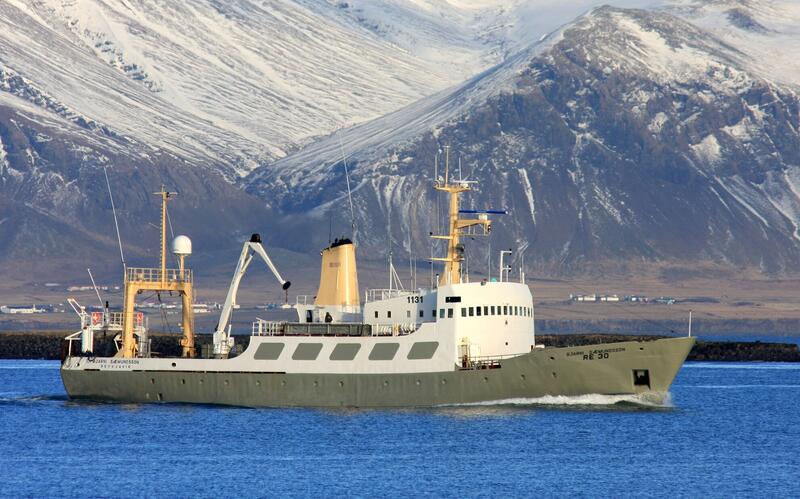

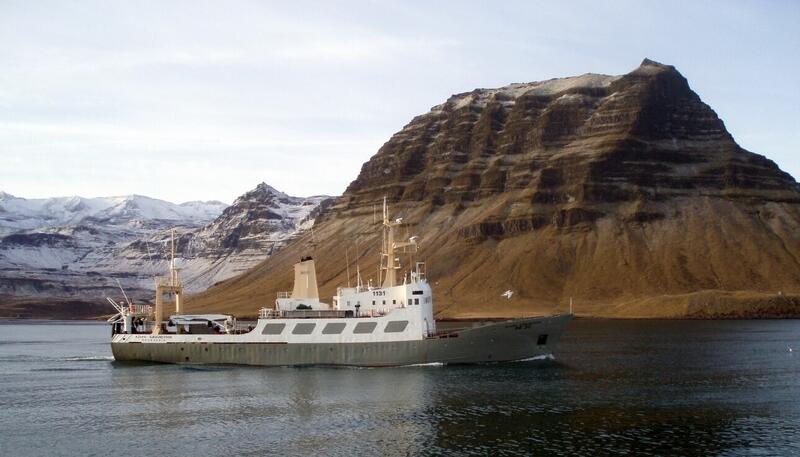

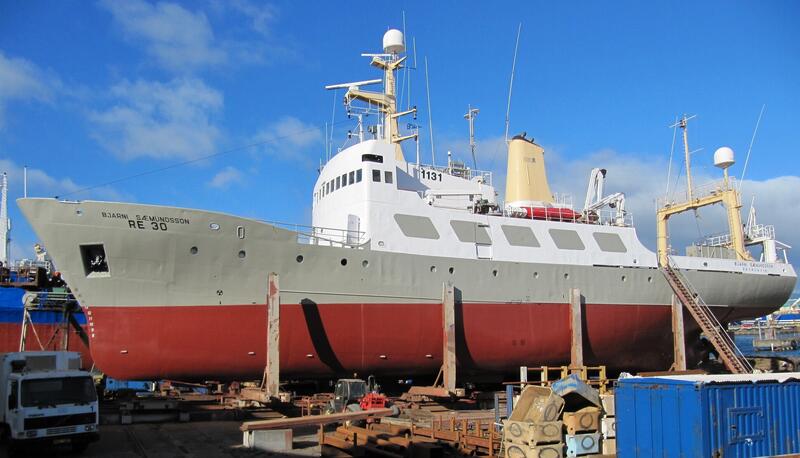

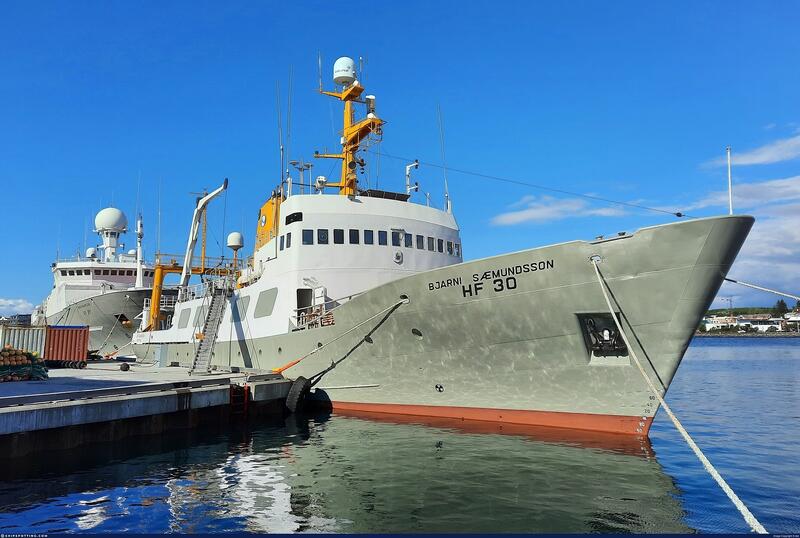

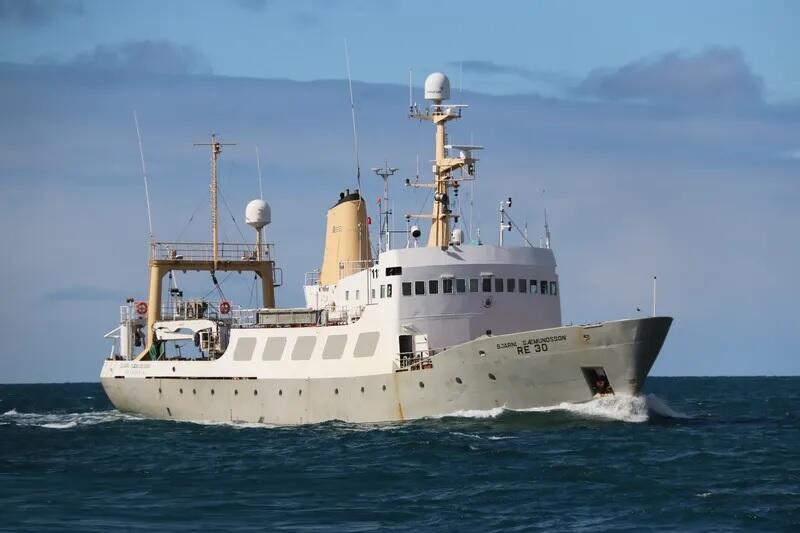

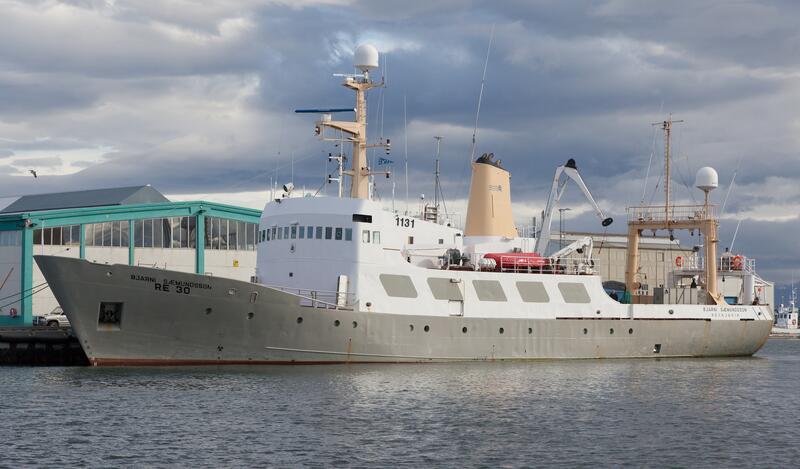

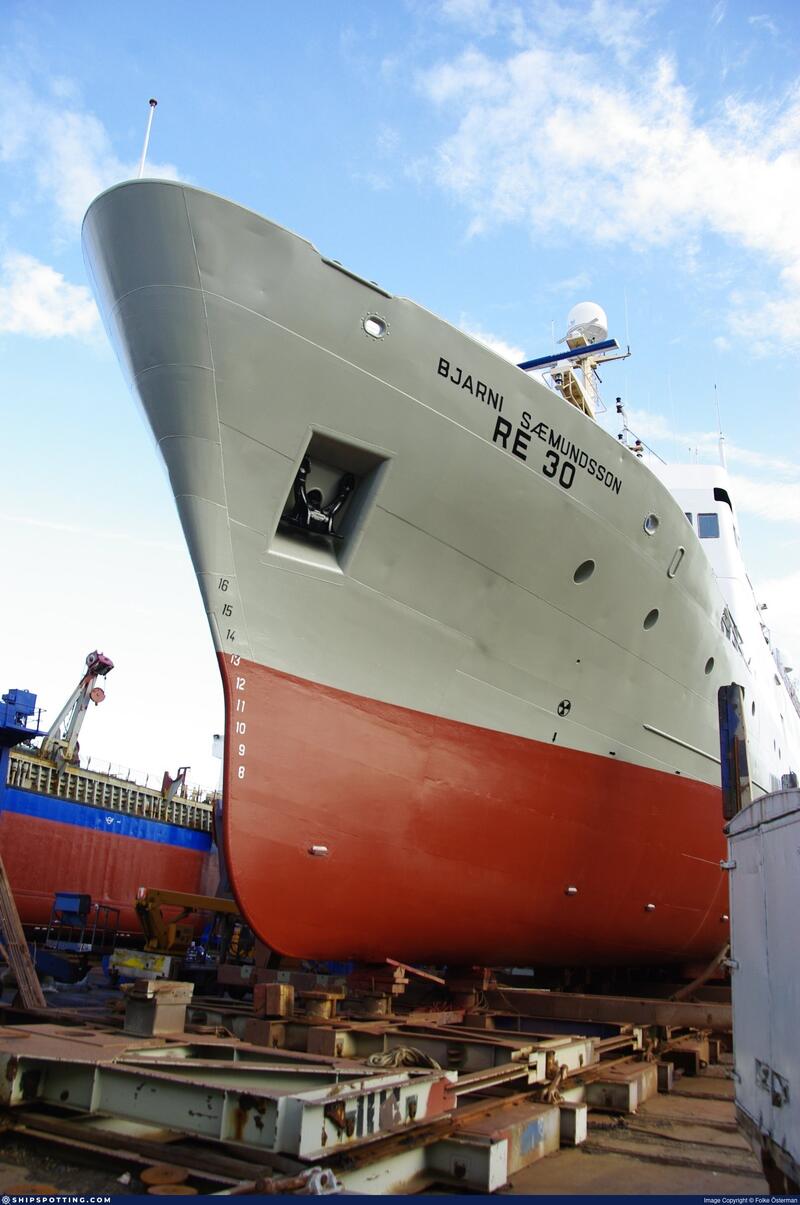

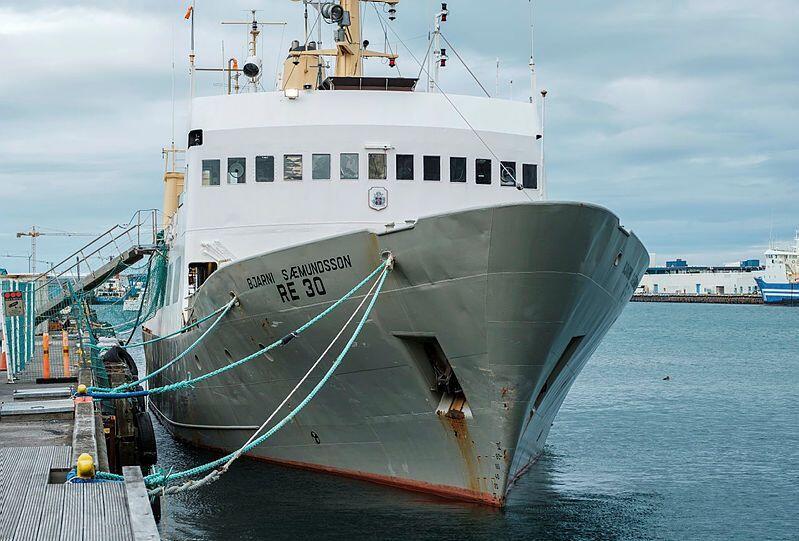

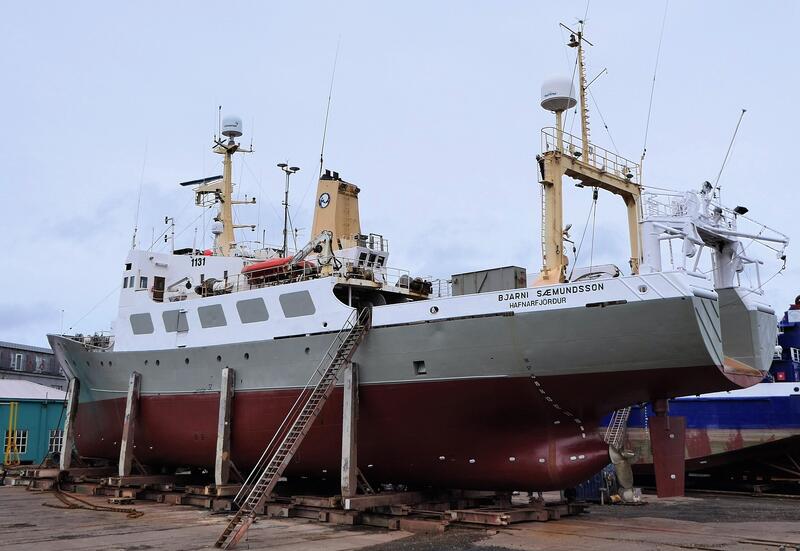

The vessel was built as a general research vessel, including fishery and oceanographic research. The propulsion system is of diesel electric type to secure low noise level. In 2003, the vessel had a major overhaul which included basically replacement of all three diesel engines, with new power management system, renewal of the hydraulic system, renewal of insulation, lining and inventor in messroom, galley, dayroom, laboratory, room, wet laboratory and wheelhouse.

Specifications

Accommodation

The vessel is equipped with laboratories and research areas. Dry and wet laboratories, acoustic center. Totally there are cabins for a crew of twenty-nine (29), in eight (8) double cabins and thirteen (13) single cabins. All cabins are equipped with sinks and two cabins have sinks, toilets and shower. Altogether there are three showers and six toilets for public use.

Construction

Length o.a.: 55.87 m
Length p.p.: 49.00 m
Breath mld.: 10.60 m
Depth to deck 2. (trawl deck) 7.00 m
Depth to deck 1.: 4.65 m
Max draft.: 4.40 m
Displacement at 4.40 draft.: 1378 t
Light Weight.: 1030 t
Hold size.: 65 m3
Fuel oil tanks 198 m3
GT.: 822
GRT.: 777

Equipment

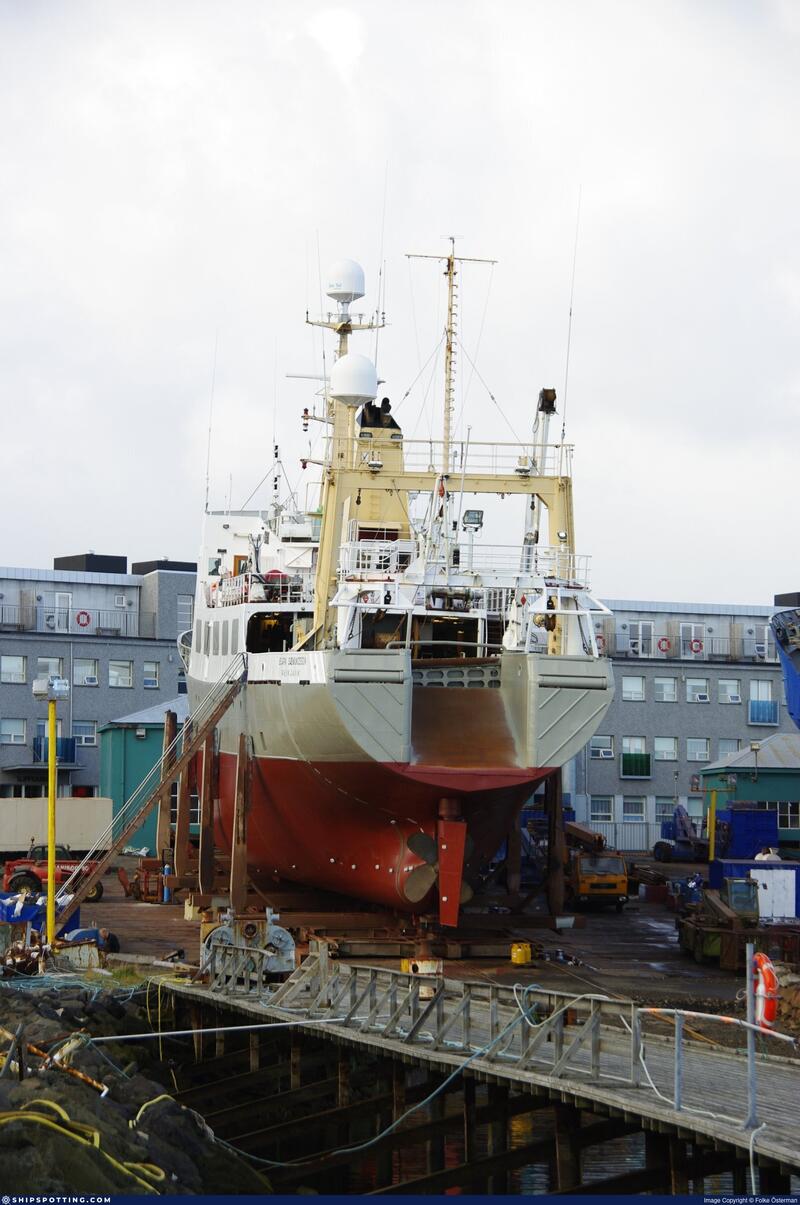

The vessel is equipped with numerous winches for towing and scientific purposes. There are two main hydraulic systems in the vessel, a low-pressure system for the main trawl winches and a high-pressure system for the auxiliary and scientific winches. The vessel has a stern ramp
for operation of a bottom and pelagic trawl gear, a fish receiving bin and a wet fish laboratory in front of the fish bin on the main deck.
Two (2) main trawl winches low pressure (174hp), 3650m of Ø 26mm wire
One (1) Net drum
Two (2) Sweep line winches
Two (2) Gilson Winches
Two (2) backstrap winches
Tree (3) winches for research equipment, (plankton, hydrographic)
Deck crane -Palfinger 14tm
MOB boat crane
Gantry for operation of research rosette

Engine(s)

The diesel electric propulsion system is based on three diesel engines and two tandem connected DC electrical motors.
Engines: 3x Deutz AG Werk Mannheim TBD 616 V12 585 kW @ 1500 rpm 400V/230V 50hz
Propulsion motor: 2x515 kW @440 V, 200 RPM air cooled, make AEG
Propeller: 2800 mm Diameter, max. 200 RPM
Thrusters: Retractable 360° Bow Thruster Electrically Driven, 130 kW

Electronics

The vessel is equipped with basic marine research and oceanographic equipment and is considered viable for silent ship operations.
The main electronic equipment is:
Simrad APC-10 Sonar
EK-60 echosounder
2 pcs. Furuno GPS compasses
TimeZero computer 2 pcs. (without license)
Olex navigation computer 1 pcs. (without license)
Wind speed measuring instrument
Seawater temperature indicator
Radar Furuno FAR-2218 X-Band
Radar Furuno FAR-2137 S- Band
Furuno Navtex NX-700
Furuno GPS GP-170
Furuno GPS GP-33
Simrad Autopilot AP-70
GMDSS recivers
Sailor VHF hand recivers 3 pcs.
Marport recivers (no sensors)

Certification

Classification: DNV (GL) X100 A5 E1 Fishery Research vessel MXC E1 AUT

Disclaimer

The particulars and specifications are supplied by the vendor and not SeaBoats. Such information has not been verified and may be incorrect. Please do not rely on particulars and specifications unless you have verified their accuracy.
