2 x NEW 6.0M ALUMINIUM SHALLOW-DRAFT WORKBOATS – AVAILABLE NOW

MOC Shipyards is pleased to offer two new 6.0m aluminium shallow-draft workboats, designed by Australian Marine Technology Pty Ltd and constructed by MOC Shipyards Pvt Ltd in marine-grade aluminium.

A practical multi-role platform for shallow-water operations, the workboat combines useful cargo capacity, simple operation and beach-landing capability in a compact six-metre platform.

Suitable applications include cargo supply, crew transfer, diving and ROV support, survey work, oil-spill response, medevac duty, fish farm operations and general inshore or lake service.

The 1.20m bow ramp, operated by a 12V winch, provides convenient loading access for passengers, equipment and light vehicles.

PRINCIPAL PARTICULARS

Length overall: 6.00m
Length waterline: 5.40m
Beam: 2.40m
Loaded draft: 0.30m
Capacity: 6 passengers + 2 crew
Cargo/deadweight: 2.6 tonnes
Clear deck area: 7.5m²
Deck strength: 0.5 tonnes/m²
Engine: 1 × Yanmar Neander 50 HP diesel outboard
Maximum speed: 20 knots
Economic speed: 15 knots
Fuel capacity: 250 litres
Fuel consumption: approx. 10 L/h at economic speed

EQUIPMENT HIGHLIGHTS

Self-draining working deck with aft scuppers and twin swim platforms.

Four bollard/lifting-point sets and side tie-down rails rated to 500 kg SWL.

Simrad GO9 XSE GPS/plotter/sounder and Icom M510E VHF.

Hydraulic steering, navigation lighting and dual 100 Ah marine batteries.

Survey-oriented safety equipment, SOLAS lifejackets, flares and buoyancy foam.

PRICE: USD $100,000 EACH

2 VESSELS AVAILABLE NOW.

Specifications

Construction

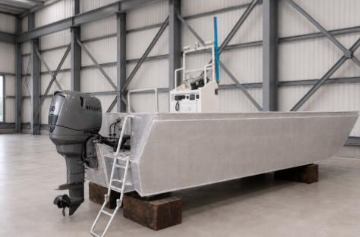

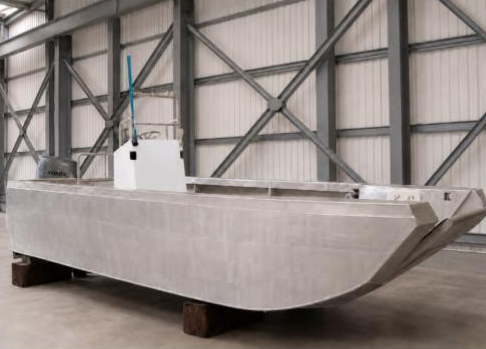

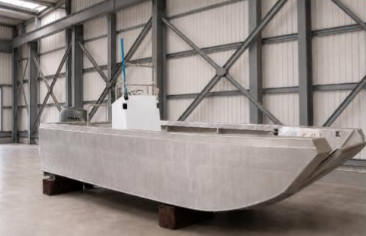

6.0m Aluminium Shallow-Draft Workboat – Exterior View

6.0m Aluminium Shallow-Draft Workboat – Yanmar 50 HP Diesel Outboard

Equipment

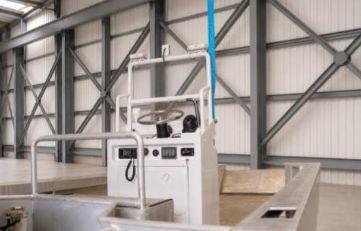

Helm Station and Working Deck

Navigation Equipment

Helm Station and Working Deck

Engine(s)

6.0m Aluminium Shallow-Draft Workboat – Yanmar 50 HP Diesel Outboard

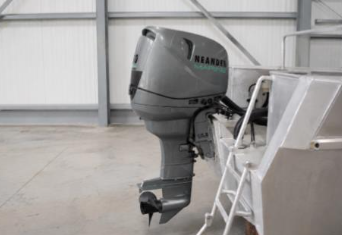

Yanmar Neander 50 HP Diesel Outboard – Close-Up

Electronics

Helm Station and Working Deck

Certification

All newbuild ships and boats are built to IACS Classification and flag state rules pertaining to the country of destination.
